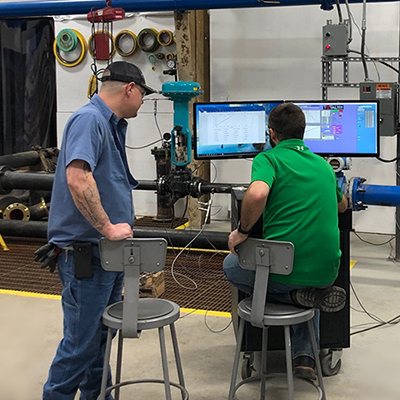

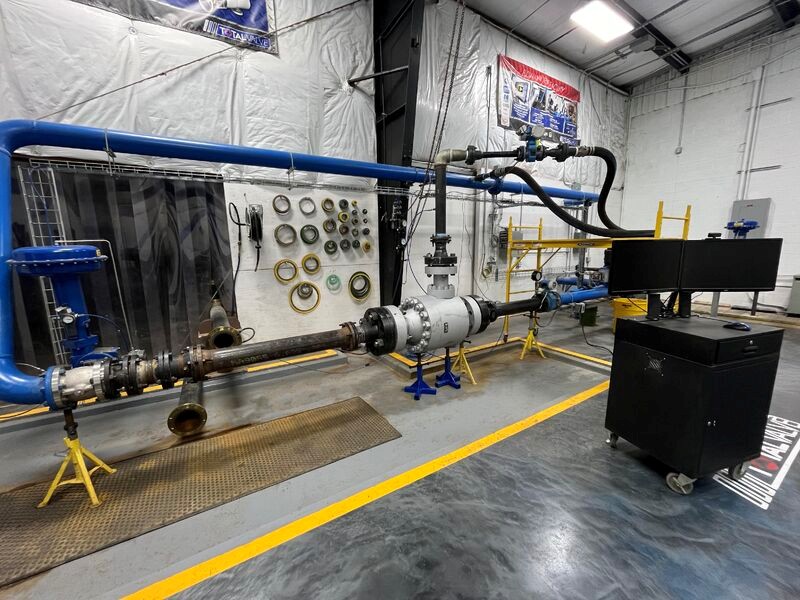

Flow Lab and Instrumentation Lab

Our lab is staffed by engineers to assist customers with performance testing and is utilized to help manufacturers of control, pressure relief, emergency shutdown valves, and regulators to achieve desired valve performance.

Overview / Specs

Three flow loops:

• Loop 1-Water-up to 1700 GPM-valve size limit 10”
• Loop 2-Air-120 PSI/4000 SCFM-valve size limit 6”
• Loop 3-Air-700 PSI/17,000 SCFM

More Info:

• Lab view data acquisition provides sample rate up to 1,000 times/second.
• Flow Meters: Endress Hauser / Rosemount / Seametrics
• Please complete this form to schedule a test.

Check out our current Inventory!

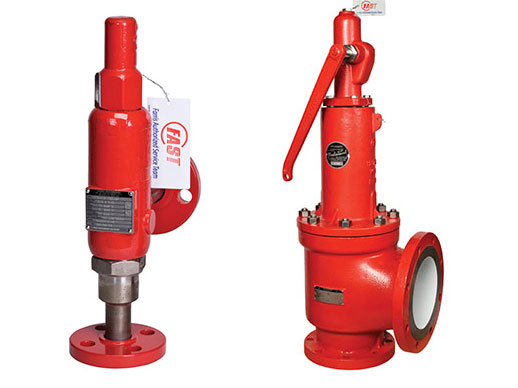

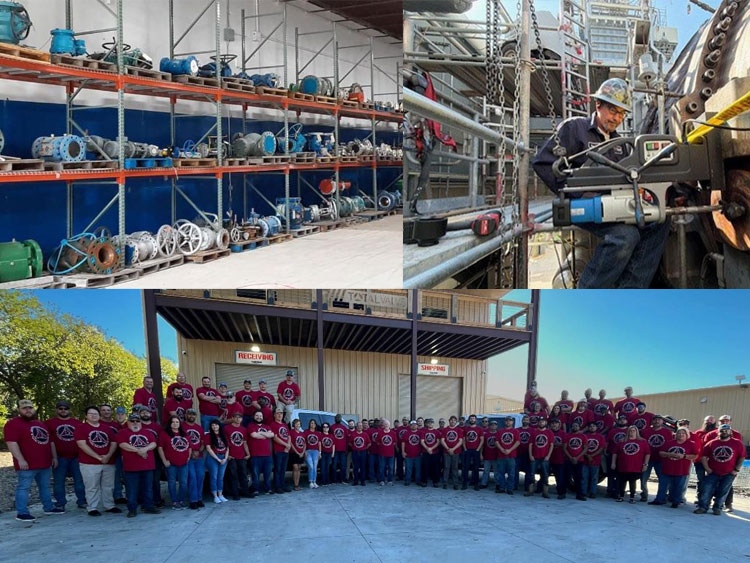

Our parts and warehouse inventory includes an array of service parts, pressure relief valves, and all types of process line valves. Both new and rebuilt options are available.

• Learn how to save 30% on your valve purchases here.

Valve Training Sessions

To further assist our customers, we offer individualized on-site training sessions. These classes incorporate hands-on maintenance and repair methods, as well as training on valve performance testing. Please call 1.800.324.7035 to schedule your "Lunch and Learn" session.

Environmental Compliance Statement

Total Valve Systems sets forth our priority on protecting the environment when operating our facility and performing services for the customers. Whether on–site at your facility, or in-house, we will operate in compliance with all relevant environmental legislation and strive to use pollution prevention and environmental best practices in all we do.

Read Full Statement
